Previous Projects

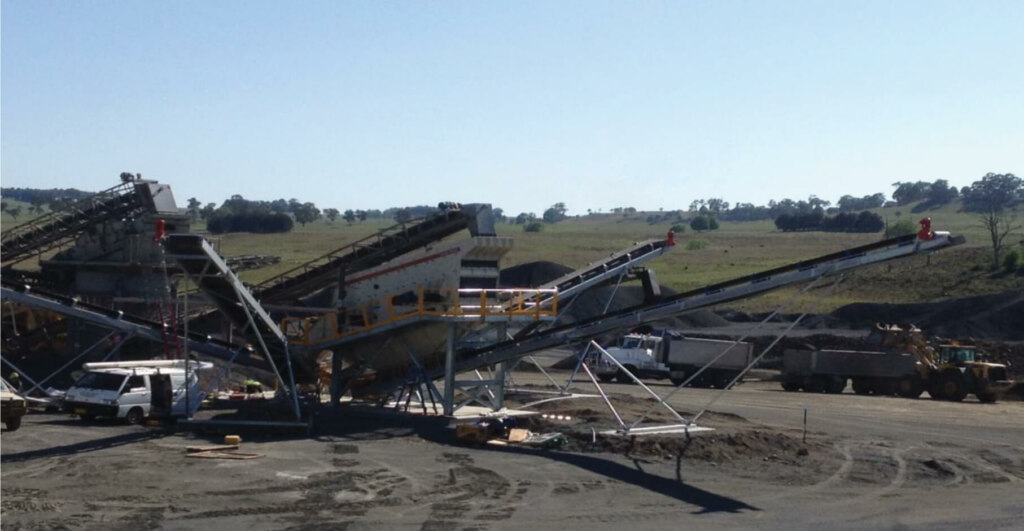

Product Screen Module including:

• METSO CVB1845 TD Vibrating Screen Screen Structure
• Chutes – AR500 Lined
• 3*18m Product Conveyors
• 1*20.5m Product Conveyor
• Galvanized Protective Coating System

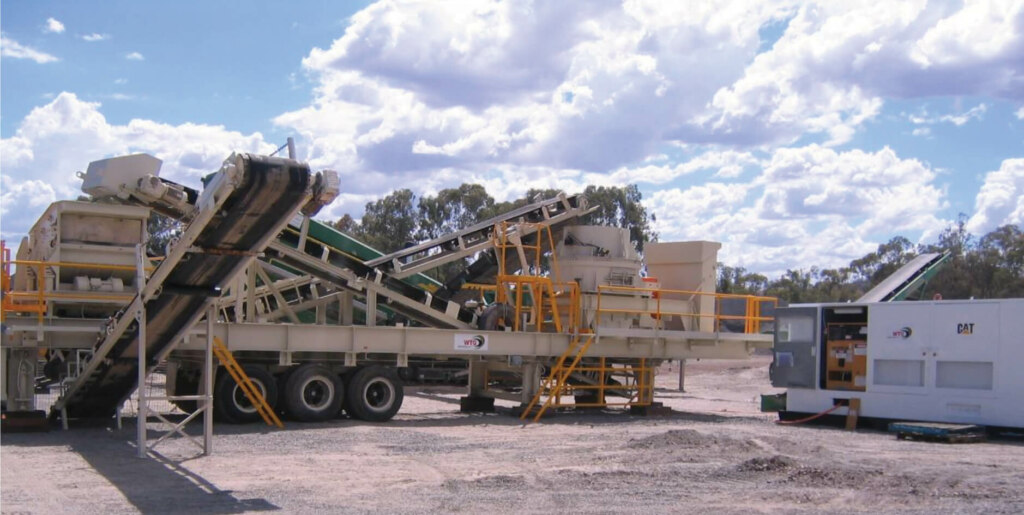

Refurbish Mobile Crushing and Screening Module including:

Replace Conveyor Drives.

• Structural Modifications.
• Installation of Larger Barmac Crusher.
• General Chute repair and replacement.
• Manufacture and Installation of new walkways and handrails. Manufacture and Installation of new walkways and handrails. Blast and application of protective coating.
• Commissioning

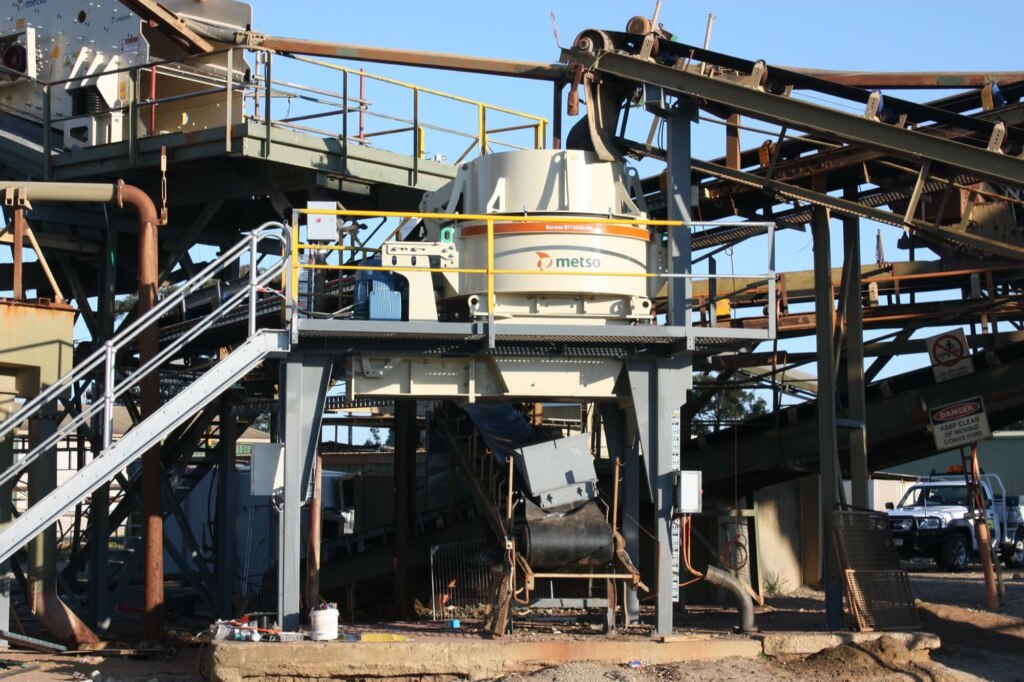

• Upgrade and Recommission a Wet River Gravel Crushing and Screening Plant
• Replace 2off 1.8*4.5 TD Vibrating Screens
• Replace Barmac B7150 Crusher
• Blast and Paint Structures
• Structural Repairs to all steel work Replace/Repair/Refurbish Chutes Guarding
• Platforms and Stair repair and replacement Water System Reconfiguration

New METSO Barmac B7150 Crusher

New Fine Product Screen

New Sand Screen c/w Galvanized Feed Chute

Install a New ROTEX Sand Product Screen Module

Including:

• Plant Layout and Installation Design
• Removal of an old Trommel Screen assembly
• Pre-assembly of the ROTEX Screen and Screen Structure
• Installation of the ROTEX Screen and Structure
• Supply and installation of 3 off 350 and 450mm width SANCON
• Conveyors c/w Galvanized Frames, Chutes, Dust Covers and Modular
• Support frames
• Installation and piping of a new Dust Extraction System

As this is an operating plant it was imperative the production was effected as little as possible.

The Rotex Screen, Screen Structure and Conveyor assemblies were pre- assembled in a laydown area on site and lifted as major assemblies into the plant to minimize installation time and disruption to production at installation.

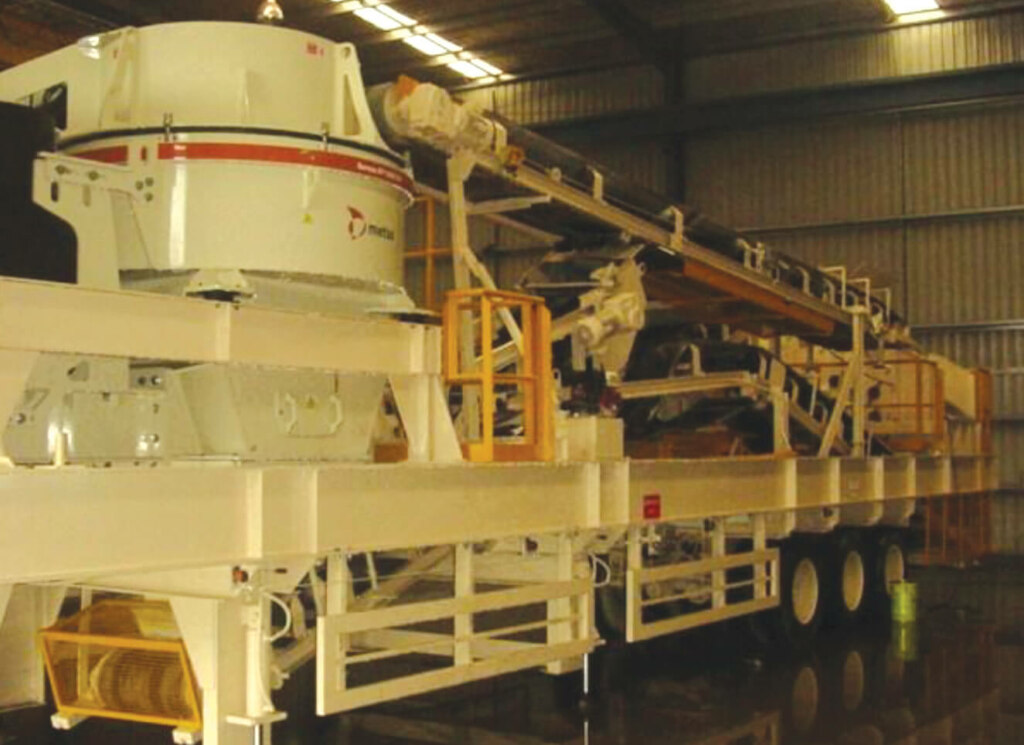

Refurbishment of a Mobile Crushing and Screening Module.

Including the replacement/refurbishment of a BARMAC 7100 Crusher and supply of Generator Module.

This plant is designed to upgrade <22 Primary Scalps into high value aggregates.

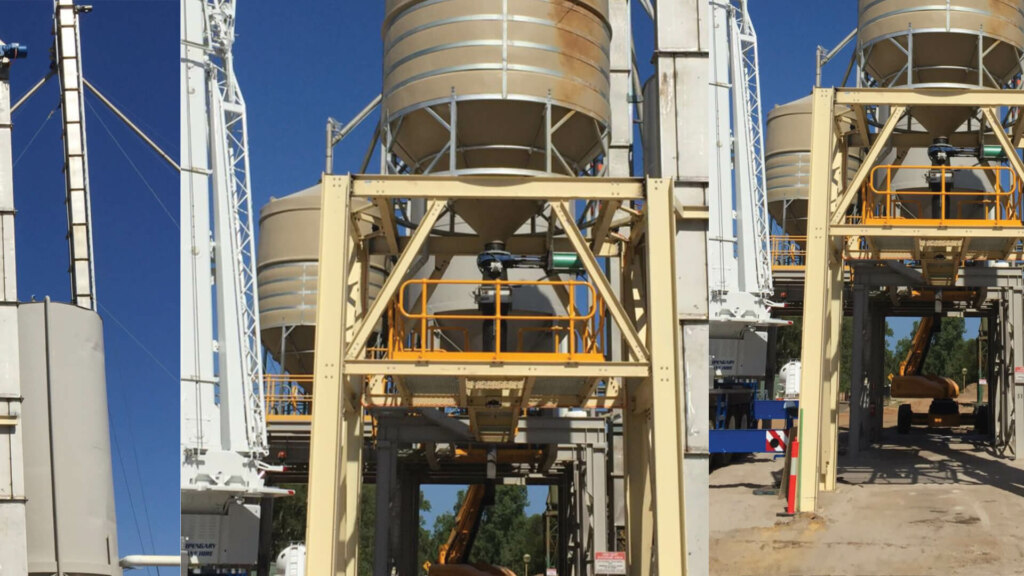

Design, Manufacture and Install a 50t capacity Silo and Truck loadout facility.

Including:

• Fabricated Steel Structure
• 50t Poly Silo
• HDPE Chutes
• Walkways and platforms to connect to existing plant
• Plant Air extension
• Civils and Concrete
• Stainless Steel Bucket Elevator
• Feed Conveyor – Galvanized SANCON c/w Chutes, Dust Covers and
• Modular Support Frames.
• High volume discharge to truck/tanker

As this is an operating plant it was imperative that production was effected as little as possible.

The structure, platforms and Bucket Elevator were pre-assembled in a laydown area on site to minimize installation time and disruption to production out loading.

Excavation and pouring of the foundations and truck slab were done predominately out of normal production hours to minimize plant down time during construction.

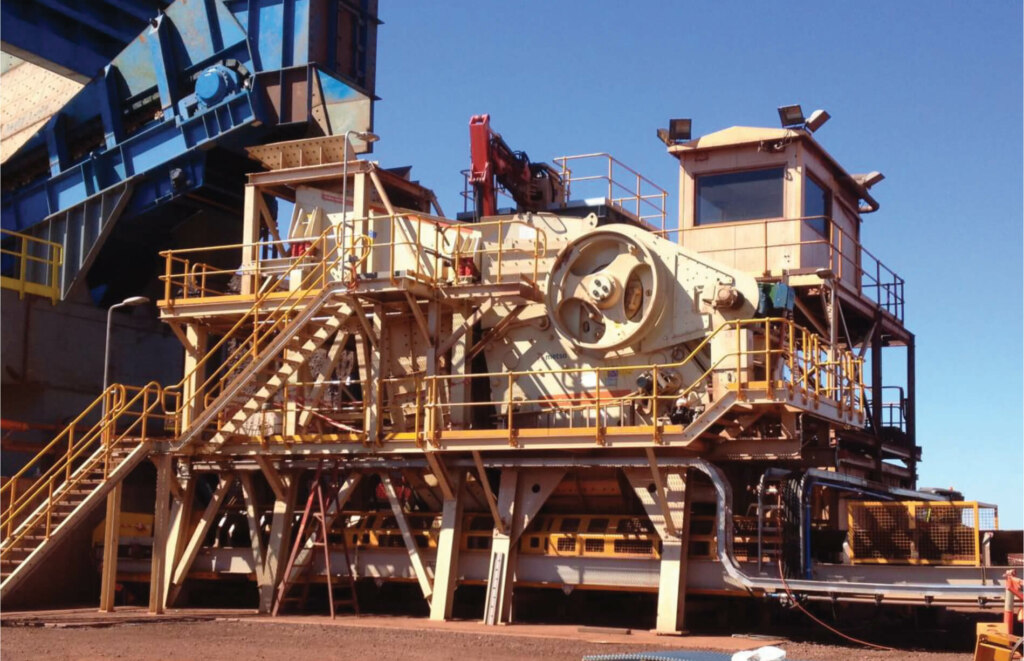

Design and Manufacure a Primary Crushing Module for 900tph of Iron Ore including:

• METSO C150 Jaw Crusher
• METSO VG Grizzly Scalp Screen
• Modular Design where a small number of preassembled sub-assemblies were supplied to site for easy installation.

Date: October 2019

Customer: Southern Pacific Sands – Ningi QLD

Scope:

Design and Construction of a Trash Screen and Deslime circuit as the 1st stage processing of Silica Sand feed from a Ladder Dredge.

Includes

• Process Design
• Concept Design of plant & 3D modelling

• Geotech investigation
• Footing and Foundation design
• SMP Detail Design
• Manufacture
• Construction

Details:

Trommel screens can have issues in wet applications where drive wheel slip causes instability and bounce of the Screen Barrel. To eliminate this phenomenon we designed a unique 8 wheel drive system where wheel slip and the instability of the Screen Barrel was eliminated.

Operation and maintenance Safety was also a key requirement. A step down platform and ladder system was installed to allow controlled, safe access to the internal of the classifying Tank without the need for add hoc access.
